"Hands-on" Light Field Display via Engineering Scalable Optics, Algorithms, and Mounts

Feifan Qu1, Pengfei Shen1, Li Liao1, Yifan Peng1

1The University of Hong Kong

Proceedings of ACM SIGGRAPH Asia 2025 (XR)

Oct 3, 2025

"Hands-on" Light Field Display via Engineering Scalable Optics, Algorithms, and Mounts

Abstract

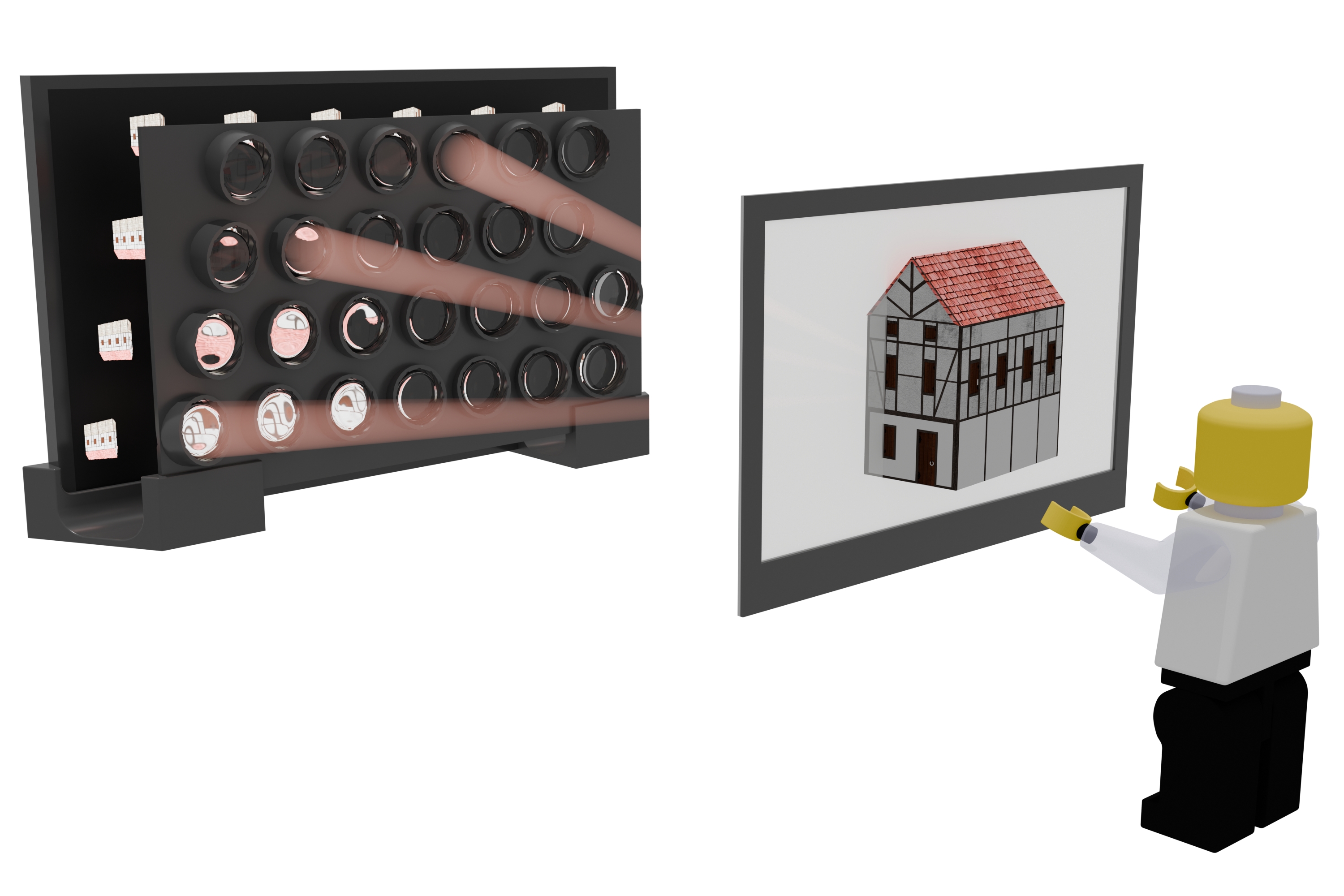

We present a scalable, “hands-on” light field display for shared, glasses-free Extended Reality (XR). Our system uses an array of mini-projectors, built from low-cost, off-the-shelf components, to project a 3D light field onto a directional diffuser screen. This provides multiple viewers with vivid scenes featuring continuous motion parallax and correct stereo parallax. Our core technical contributions are a systematic hardware and software pipeline. Hardware precision is bootstrapped using 3D-printed mounts and finalized with a camera-assisted calibration method that compensates for optical and geometric errors. A physically-based ray tracing algorithm ensures the final imagery is realistic. The integration of gesture tracking enables intuitive interaction, demonstrating a practical and accessible approach to building collaborative XR systems.

Summary

We present a scalable, “hands-on” light field display for shared, glasses-free Extended Reality (XR). Our system uses an array of mini-projectors built from low-cost, off-the-shelf components to provide multiple viewers with vivid 3D scenes featuring continuous motion parallax.
